590 WMax Power
22.85%Efficiency (STC)
1500 VSys. Voltage
- Bifacial TOPCon cells (N-type)
- Glass-glass construction, AR-coated
- IP68 junction box; Class C fire rating
- Low temperature coefficient on Pmax
Ready for utility-scale and rooftop deployments
Talk to an expert

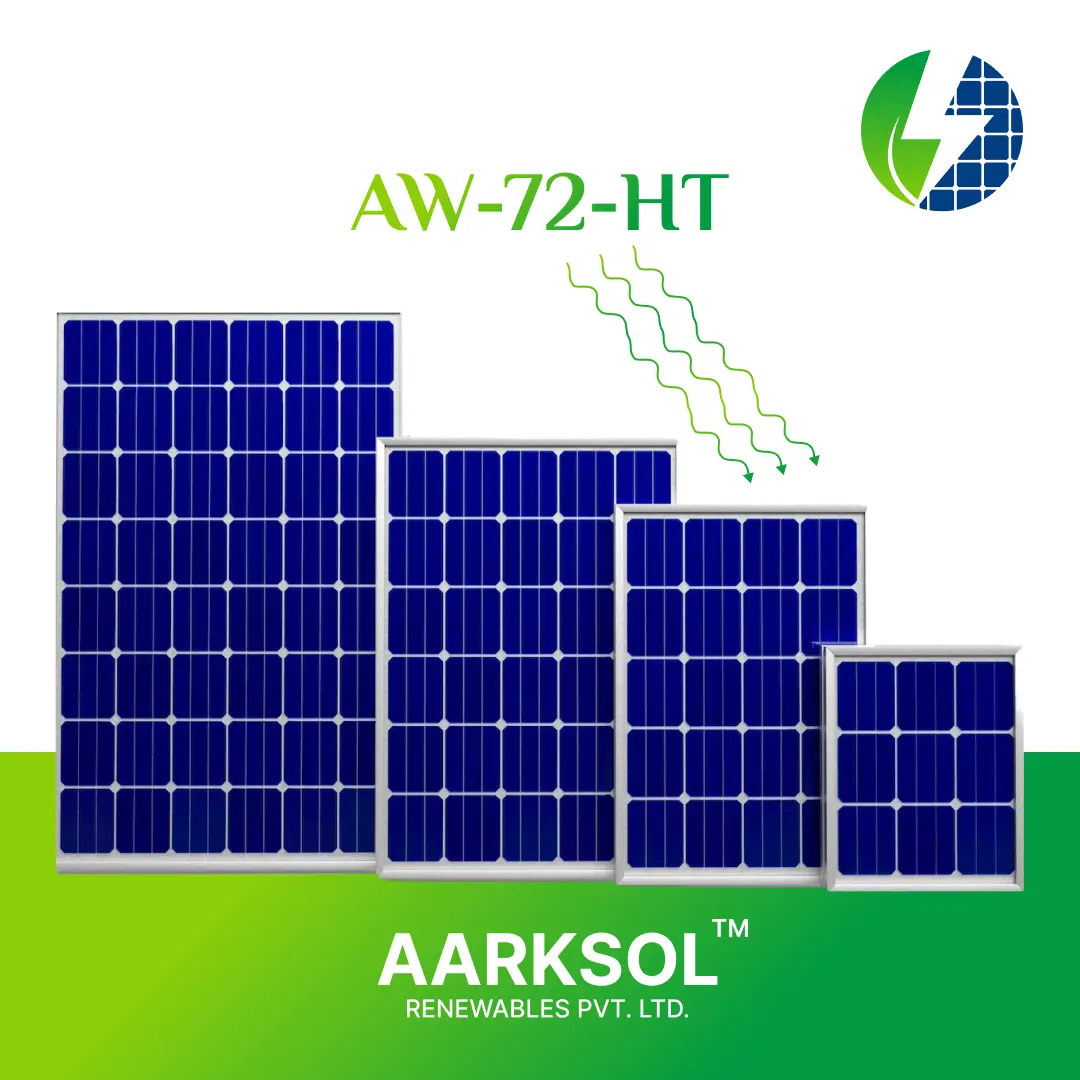

| Module Type | AW-72-HT (Bifacial N-type TOPCon) |
|---|---|
| Cell Arrangement | 144 cells (72 × 2) |
| Pmax (STC) | 570–590 W |
| Module Efficiency (STC) | 22.07–22.85 % |
| Vmp / Imp | 43.58–44.17 V / 13.08–13.36 A |
| Voc / Isc | 52.10–52.90 V / 13.83–14.07 A |
| Dimensions | 2278 × 1134 × 30 mm |
| Weight | 32.0 kg |
| Front / Back Glass | 2.0 mm, Low Iron, AR Coated / 2.0 mm |
| Frame | T6 Anodized Aluminium Alloy |
| Junction Box | IP68, 3 diodes |
| Connector | MC4-compatible |
| Cable | 4.0 mm², 1200 mm |
| Operating Temperature | -40°C to +85°C |
| Max System Voltage | 1500 VDC (IEC) |
| Series Fuse Rating | 30 A |
| Mechanical Load | Front 5400 Pa / Back 2400 Pa |
| Bifaciality | ~70 % |
| Warranty | 12-year product / 30-year linear power |
| Irradiance / Temperature | 1000 W/m² • 25°C • AM1.5 |
|---|---|
| Pmax Range | 570–590 W |
| Module Efficiency | 22.07–22.85 % |
| Voltage at Pmax (Vmp) | 43.58–44.17 V |
| Current at Pmax (Imp) | 13.08–13.36 A |
| Open Circuit Voltage (Voc) | 52.10–52.90 V |
| Short Circuit Current (Isc) | 13.83–14.07 A |
| NOCT | 45 ± 2 °C |
|---|---|
| Temp. Coef. of Pmax | -0.29 %/°C |
| Temp. Coef. of Voc | -0.25 %/°C |
| Temp. Coef. of Isc | +0.045 %/°C |
